Aluminum-Filled nylon 12 SLS SLS 3D Printing | Alumide®

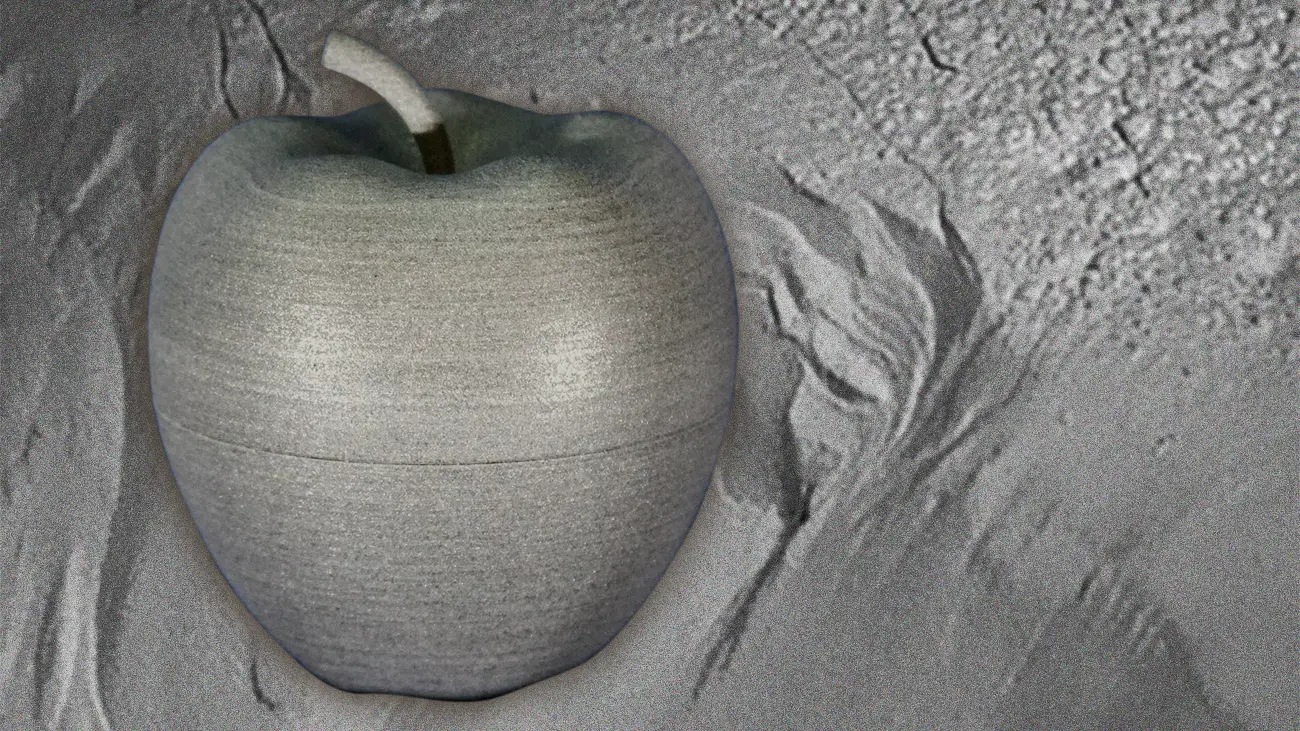

Aluminum-Filled nylon 12 SLS printed part | Alumide® | NW Rapid Mfg

Aluminum-Filled Alumide Nylon 12

Our SLS Aluminum-filled Material

When your 3D printed parts need to look and act like metal without the backbreaking weight or eye-watering price tag, Nylon 12 Alumide steps up as your ultimate sidekick. By blending tough polyamide 12 with fine aluminum powder, this laser-sintered material delivers exceptional structural stiffness, high heat deflection, and crisp dimensional accuracy so your jigs, fixtures, and enclosures never sag under stress. Need polished surfaces or custom machining? No problem. The metal-infused composite sands, drills, and finishes effortlessly, giving you the sleek aesthetic of aluminum paired with the complex geometric freedom of selective laser sintering. It is the ultimate shortcut for turning demanding functional prototypes into durable, production-ready components—making you look like an absolute engineering genius who somehow stayed way under budget.

Alumide Features

  • Metallic Gray
  • High stiffness
  • Superior dimensional accuracy
  • Good thermal conductivity
  • Aluminum powder creates a product that is somewhat brittle — not recommended for structural applications
  • Easy post processing via machining, grinding, and milling
  • Secondary polishing processes provides a surface with a metallic-looking finish
  • WARNING! This product should not be used in any application where contact with foodstuffs would be possible

Mechanical Properties

  Dry / Conditioned Unit Test Standard
Tensile Modulus
XY Orientation
3800 / -
MPa		 ISO 527-1/-2
Tensile Strength
XY Orientation
48 / -
MPa		 ISO 527-1/-2
Strain at Break
X Orientation
4 / -
%		 ISO 527-1/-2
Flexural Modulus
X Orientation
3600 / -
MPa		 ISO 178
Flexural Strength
X Orientation
72 / -
MPa		 ISO 178
Charpy Impact Strength (+23°C)
X Orientation

29 / -

kj/m2		 ISO 179/1eU
Charpy Notched Impact Strength (+23°C)
X Orientation

4.6 / -

kj/m2		 ISO 179/1eA
Shore D Hardness
X Orientation
76 / -
—		 ISO 7619-1

Thermal Properties

  Dry / Conditioned Unit Test Standard
Melting Temperature 176 °C ISO 11357-1/-3
Temperature of Deflection under Load 1.
X Orientation

144

°C		 ISO 75-1/-2
Temperature of Deflection under Load 0.
X Orientation


175


°C		 ISO 75-1/-2
Vicat Softening Temperature
X Orientation

169

°C		 ISO 306/B50

Electrical Properties

  Dry / Conditioned Unit Test Standard
Volume Resistivity
X Orientation
3E12 / -
Ohm·m		 IEC 62631-3-1
Surface Resistivity
X Orientation
5E14 / -
Ohm		 IEC 62631-3-2
Relitive Permittivity 100Hz
X Orientation

13 / -

—		 IEC 62631-2-1
Relitive Permittivity 1MHz
X Orientation

10 / -

—		 IEC 62631-2-1
Dissipation Factor 1 MHz
X Orientation

180 / -

E-4		 IEC 62631-2-1
Electric Strength
X Orientation
0.1 / -
kV/mm		 IEC 60243-1

Other Properties

  Value Unit Test Standard
Density 1.36 g/cm3 EOS Method
Powder Color Gray — —
Components Color Gray — —

Choosing Your 3D Printing Champion

Picking the right material shouldn't feel like a chemistry quiz, so let's break down the two heavyweights of SLS printing. If you need parts that bend but refuse to break, meet Nylon 11. Born from castor oil—yes, you get green bragging rights—this eco-friendly powerhouse offers incredible impact resistance, making it your go-to for living hinges and high-pressure environments. On the flip side, Nylon 12 is the reliable industry baseline synthesized from petrochemicals. It trades flexibility for rigidity, delivering rock-solid dimensional stability that makes it perfect for complex housings, rugged enclosures, and economical production runs.
